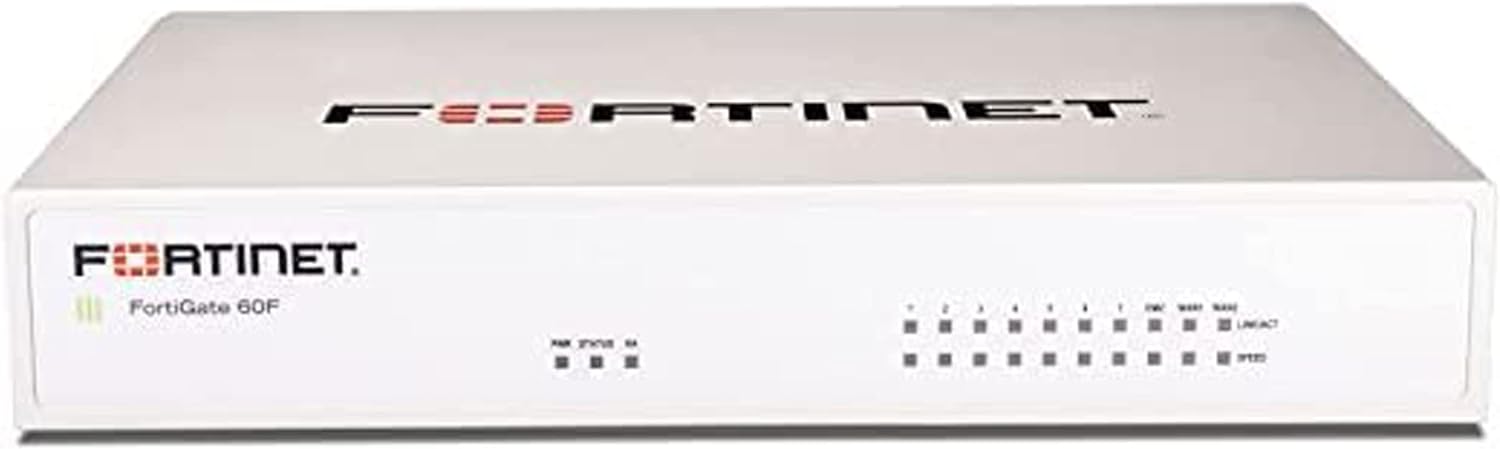

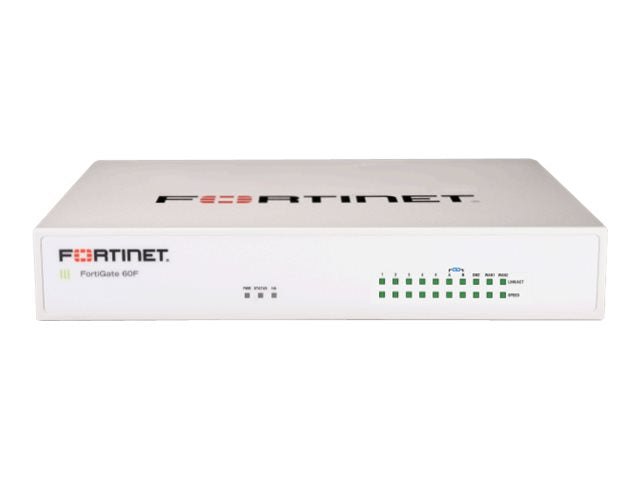

FORTINET FORTIGATE 60F

Specification

FG-60F-BDL-950-12 Specification

General

Device Type Security appliance

Bundled Services

(UTP)

1 year 24x7 FortiCare Support + 1 year FortiGuard Unified Threat Protection

Width 8.5 in

Depth 6.3 in

Height 1.5 in

Processor / Memory / Storage

Processors Installed Networking

Form Factor Desktop

1 x Fortinet FortiASIC SOC4

Connectivity Technology Wireless, wired

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE

802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2Network / Transport Protocol IPSec

Frequency Band 2.4 GHz, 5 GHz

Status Indicators Link/activity

Features

Firewall protection, antivirus analysis, Intrusion Prevention System (IPS), IPSec

Virtual Private Network (VPN), fanless, web threat protection, CAPWAP support,

application filtering

Encryption Algorithm SSL, TLS 1.3

Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Expansion / Connectivity

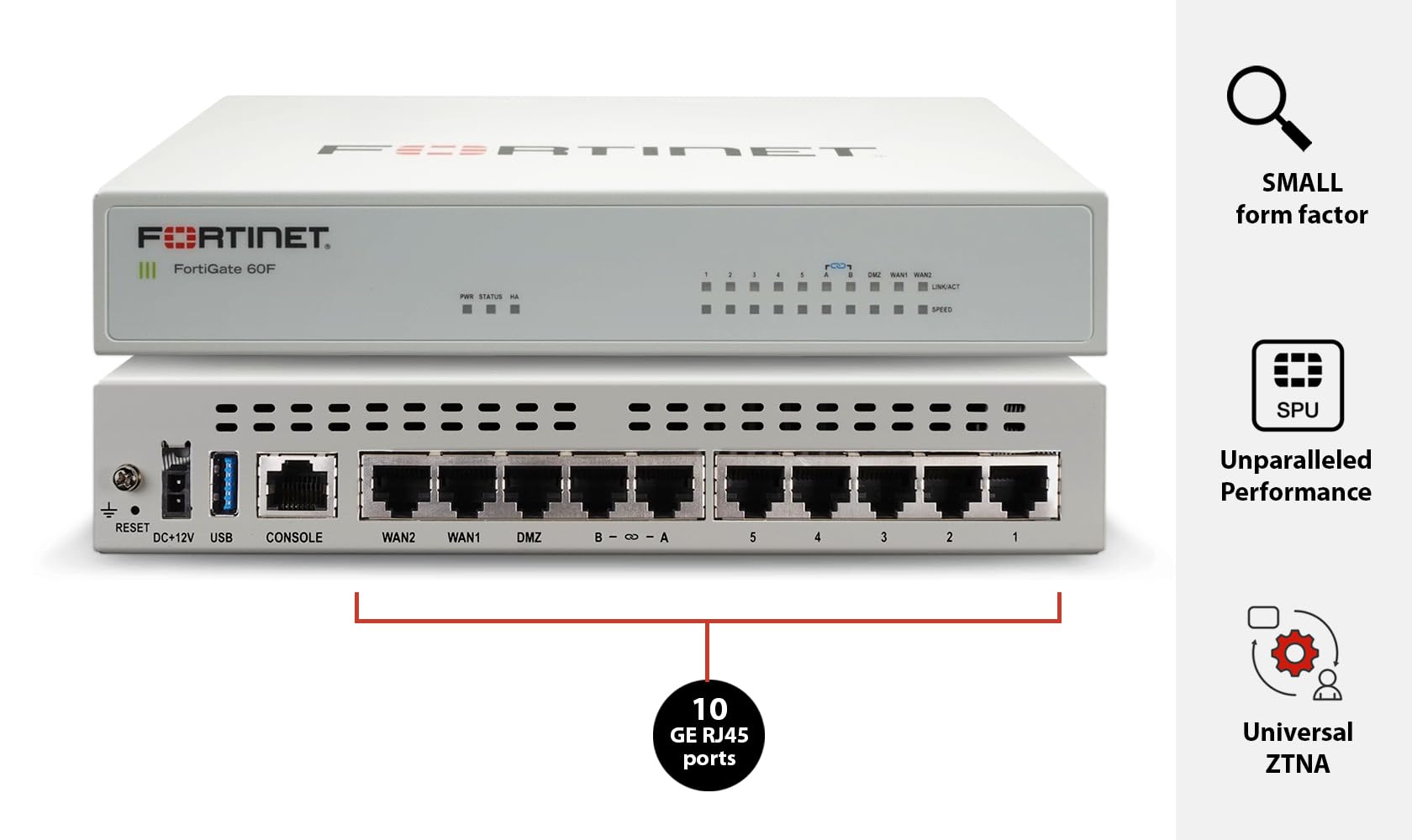

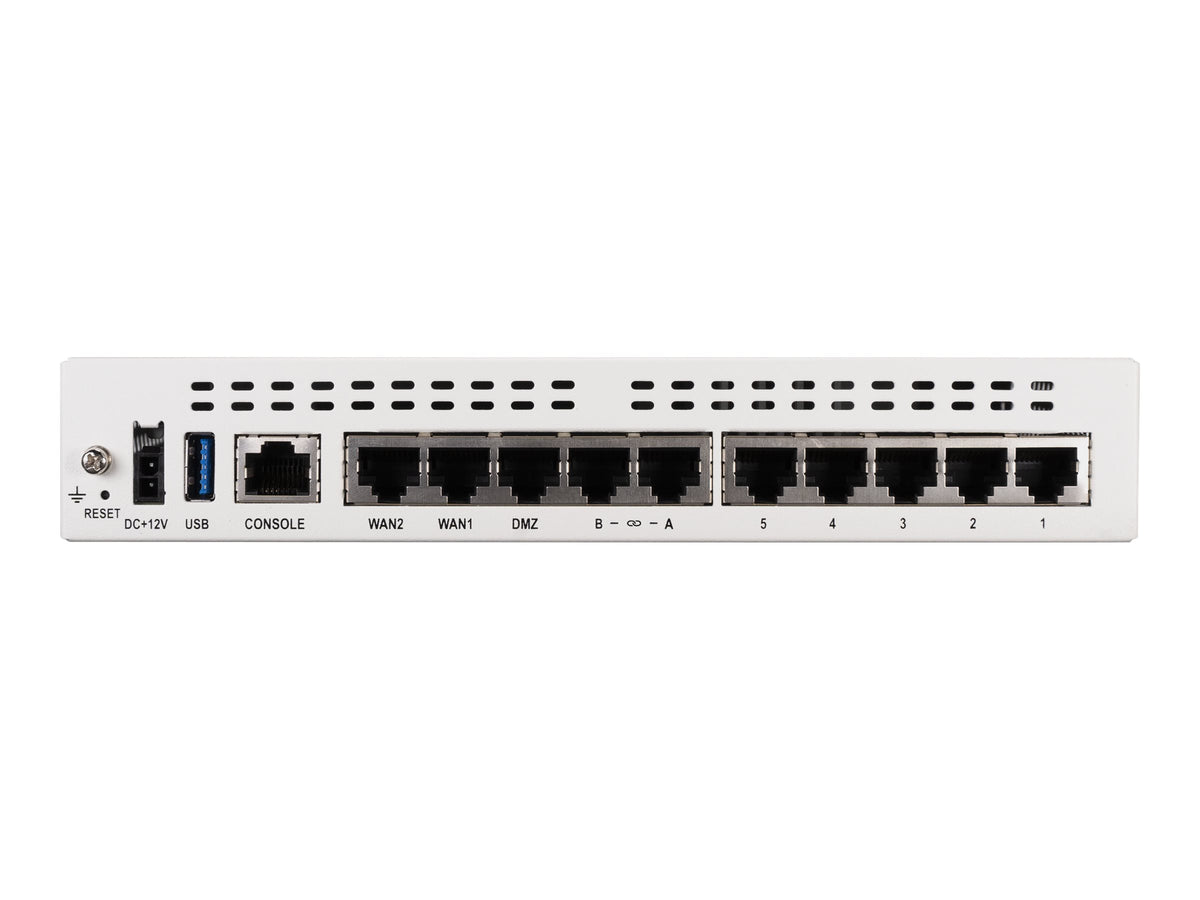

Interfaces

5 x 1000Base-T - RJ-45 | 2 x FortiLink - RJ-45 | 3 x 1000Base-T - RJ-45 (WAN /

DMZ) | 1 x console - RJ-45 | 1 x USB 3.0 - Type A

Miscellaneous

Compliant Standards UL, VCCI, C-Tick, cUL, CB, FCC

Power

Power Device External power adapter

Installed Qty 1

Voltage Required Power Consumption Operational 17.2 Watt

AC 120/230 V (50/60 Hz)

Environmental Parameters

Min Operating Temperature 32 °F

Max Operating Temperature 104 °F

Humidity Range Operating 10 - 90% (non-condensing)
